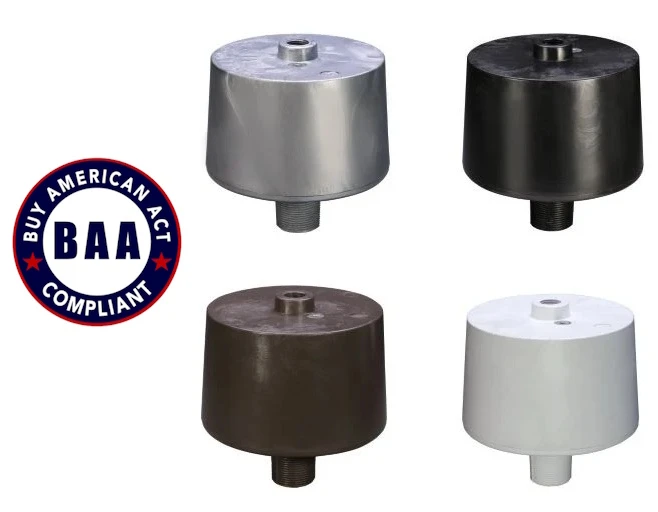

Summit Flagpole Internal/External Truck Assembly

Product Description

The Summit Truck is a revolutionary flagpole component. Universal capability for internal and external flagpole applications make it the most convenient product to have on a service truck as well as new flagpole installations. In addition, the Acetal CoPolymer construction provides long lasting and more reliable installations compared to cast aluminum. Assembled with a Deep Groove sealed bearing and all stainless-steel hardware, the Summit will survive any environment hot, cold, wet or dry.

Universal Integral Pulley Assembly for 1/8" Wire Cable or 1/4", 5/16" and 3/8" Rope Halyard

Features

•  Universal Single Halyard Internal or External,
    Stationary or Revolving Kit included as Standard
•  Double Halyard External Revolving option
    available upon request
•  Deep Groove sealed bearing fitted to a 0.004”
    tolerance in the truck base to eliminate truck leaning or “wobble”
•  Constructed with precision accuracy and fit for
    an aesthetically pleasing finished assembly
•  Able to withstand 750 lbs. PSI and over
    1,400 lbs. vertical strain
•  Dual-Bushings prevent halyard seizing between
    pulley and pulley shield in external halyard application
•  Available as Satin/Silver, Black, Bronze and White Standard

Specifications

•  Acetal Copolymer polyoxymethylene (POM)
•  Reusable Locking and Vibration Resistant
    Stainless-Steel Fasteners
•  Operating Temperature -40°F to 248°F
•  UV and Chemical Resistant Properties
•  Accommodates up to 4.5" Shaft Top Diameter
•  1 ¼” NPT threaded Spindle
•  Dimensions: 6" Cap Top, 6.5" Cap Base,
    6.75" Overall Height
•  Weight: 3 lbs. 6 oz
